Slitting Machine

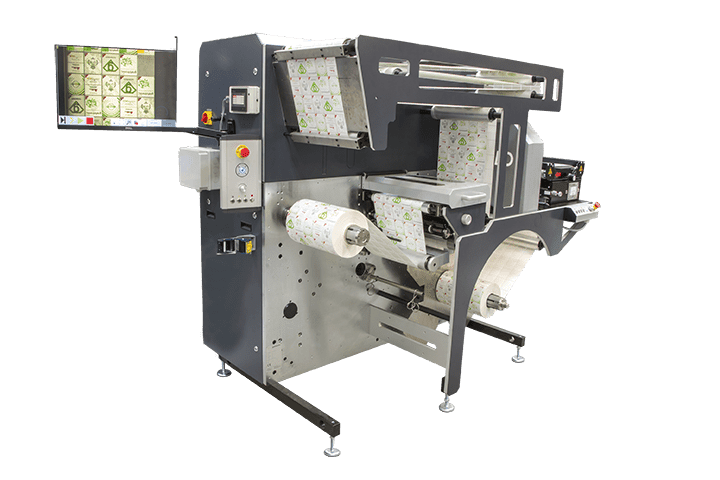

The SR3 Slitter/Rewinder is the latest high-end machine for slitting and inspection of label and mono-film materials. This third generation machine has been updated with the latest servo technology. The easy to use interface and the open machine design is made for maximum operator friendliness.
The SR3 has a very compact footprint which is important in most printing plants today.

Drive system:
Latest servo technology for full web control
Machine in solid construction and perfectly balanced

Slitting system:
Split version: shear cutting system and razor blades

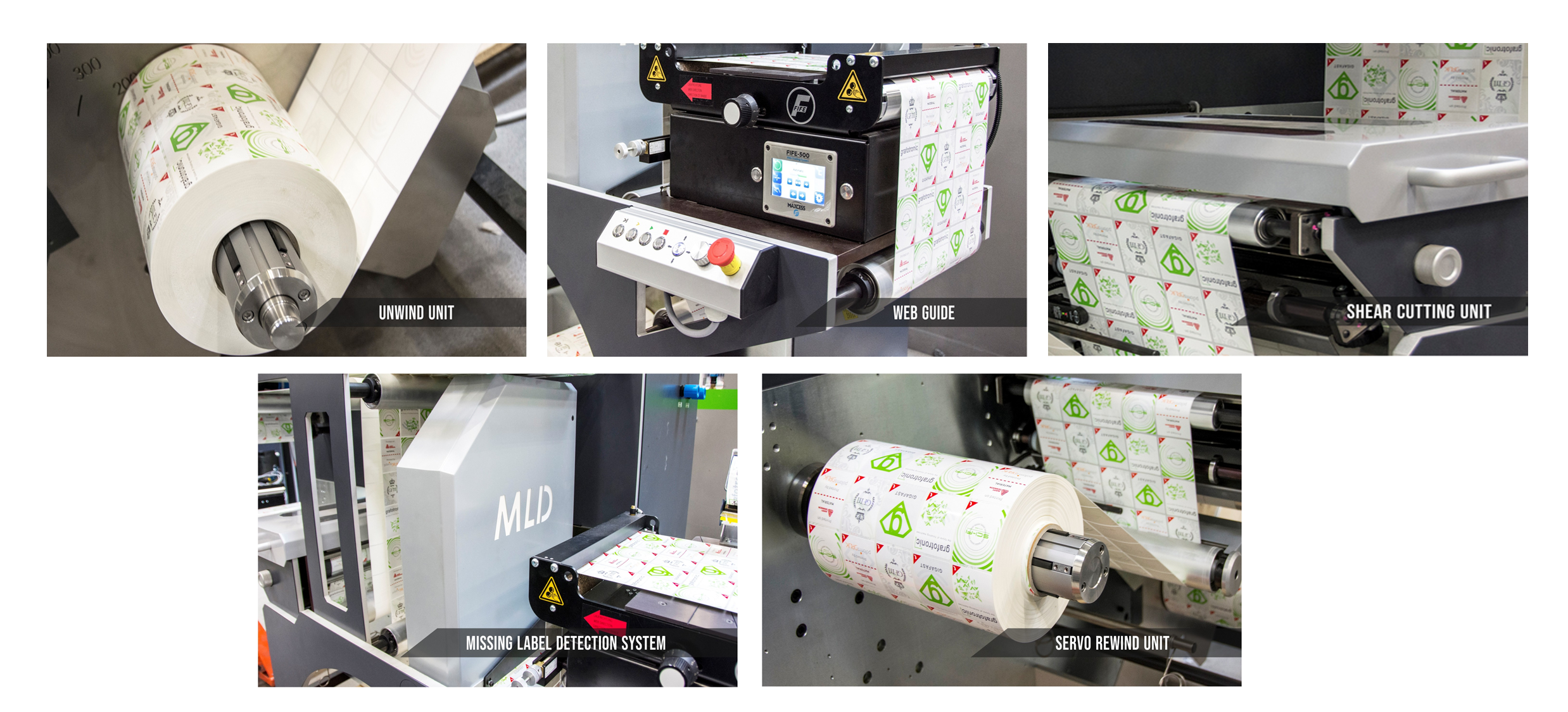

Intelligent unwind unit:
Latest electronic web guide with ultrasonic sensor
Built-in measuring system of mother roll and automatic set up of web tension throughout the machine

Rewind unit:
Semi-turret: turret for rolls up to 420 mm in turret mode or 600 mm on 1 shaft
AUTOCUT automatic web cutting and start of new cycle
Single & Dual rewind: for label and mono film materials with perfect and automatic tension control for rolls up to 600 mm

Basic inspection with stroboscope, sensors or basic cameras

Rewind shafts:
With the new Q-SHAFT you turn 1 handle 180o to change the shaft Q-SHAFT is quick, easy and hassle free

Technical specifications
Web widths: 350 mm / 450 mm
Max. speed: 250 m/min
Drive: Servo
Max. unwind diameter: 750 mm
Max. rewind diameter: 600 mm / 2 x 450 mm
Operation: R/L or L/R
Size: L 1720 x W 1210 x H 1800 mm
